ST XTA plus 3 Coilover Suspension - F80/F82/F83/F87 - M2/M3/M4
ST XTA plus 3 Coilover Suspension - F80/F82/F83/F87 - M2/M3/M4
VAT for European customers is added at checkout.
Ships within 3+ weeks
Couldn't load pickup availability
- Product Line: Street Performance
- Lowering FA/RA (mm): 20-40/15-40
- Version: XTA plus 3
- Damping adjustment: Rebound and Compression Damping
- Material: Galvanized steel
- Adjustment FA/RA: Thread/Thread
- Approval: Teilegutachten (§19.3)
- Content of delivery: Set FA coilover struts incl. top mounts, RA springs with height adjustment + dampers
BMW F80 M3 / M3 Competiton / M3 CS
BMW F82 M4 / M4 Competition / M4 CS
BMW F87 M2
BMW F87 M2 Competition / CS
*NOTE - Camber Plates are made to fit both non-competition and competition variants of the BMW F87 M2. Camber plates are with the 5 bolt arrangement found on F8X vehicles post 2016, the new bolts are included in the package.

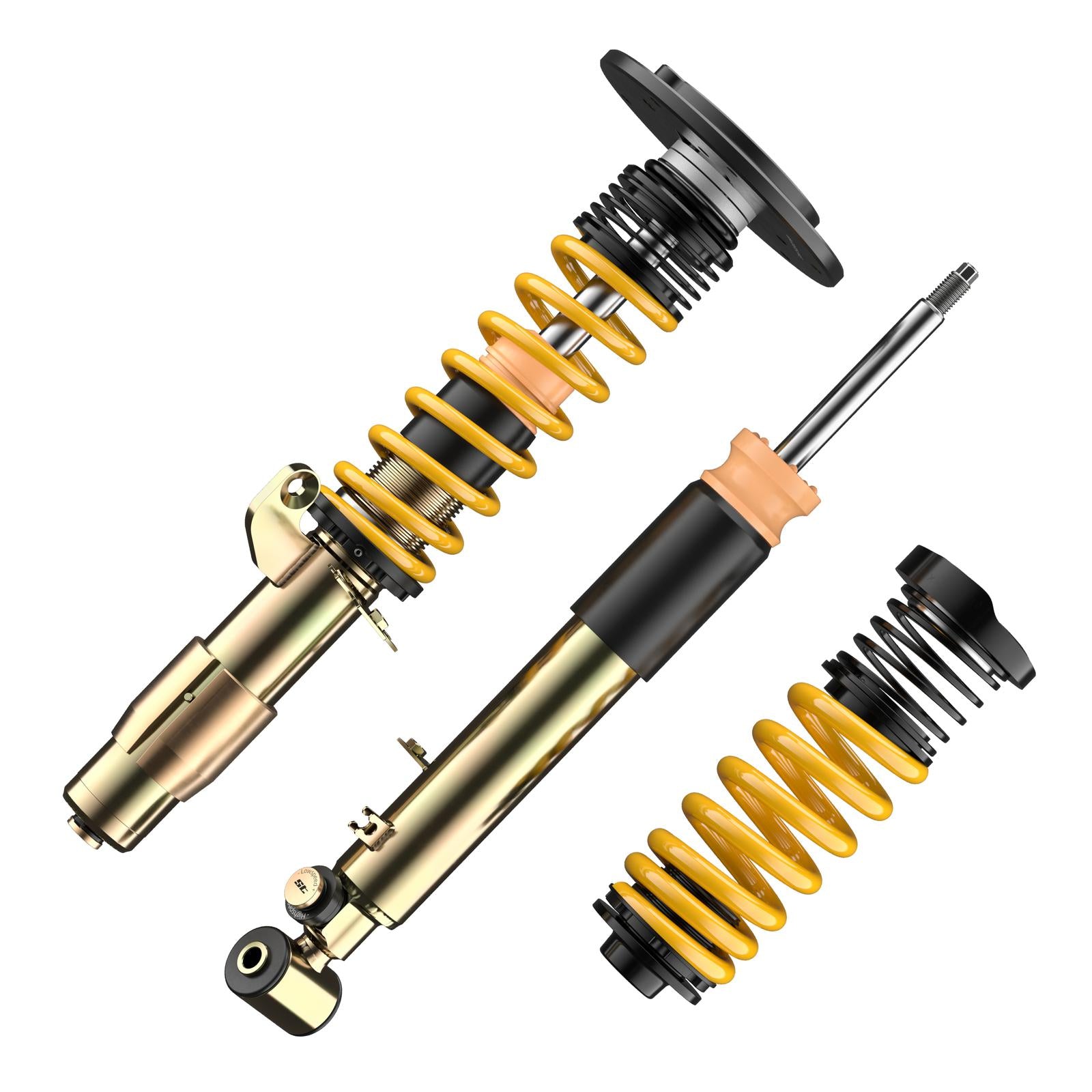

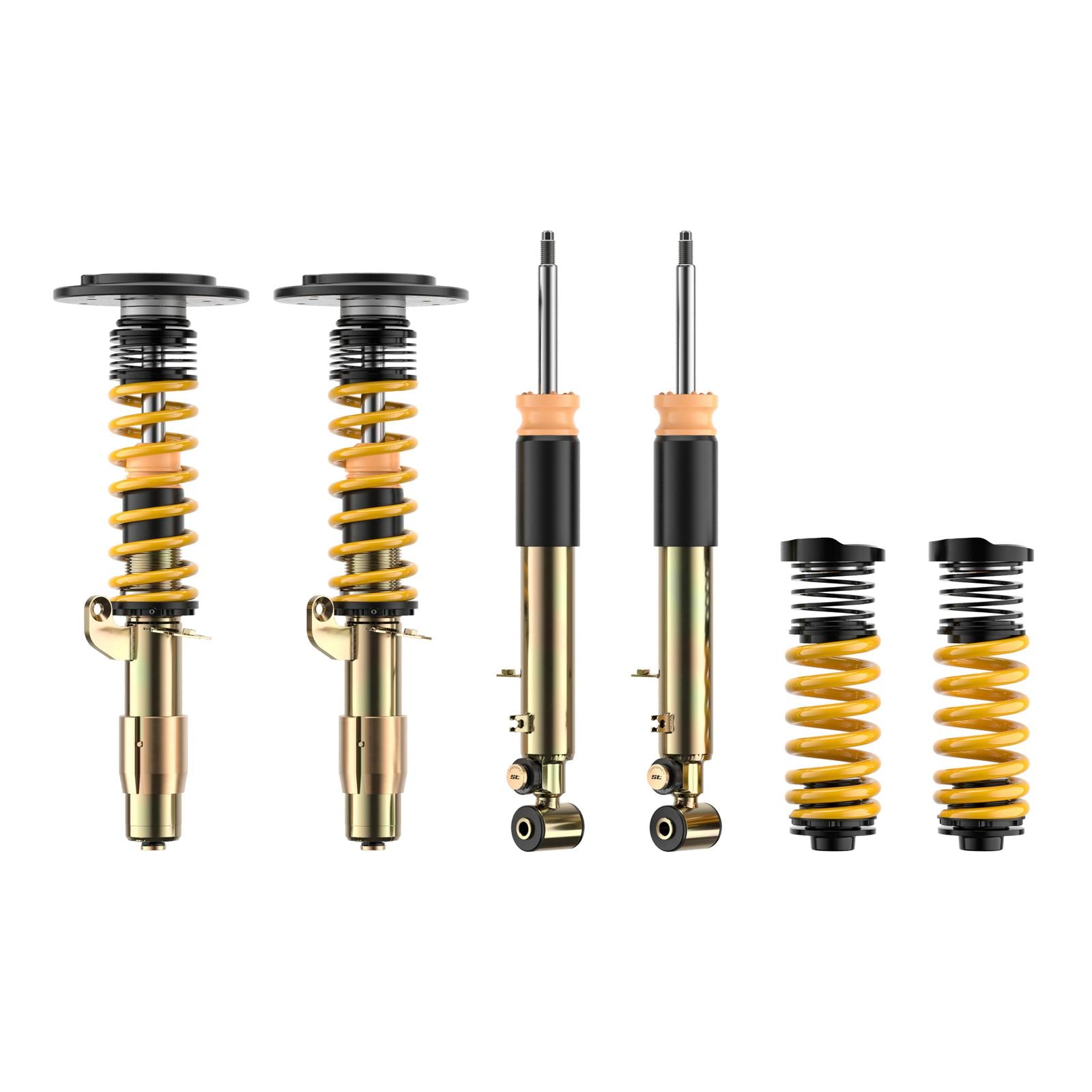

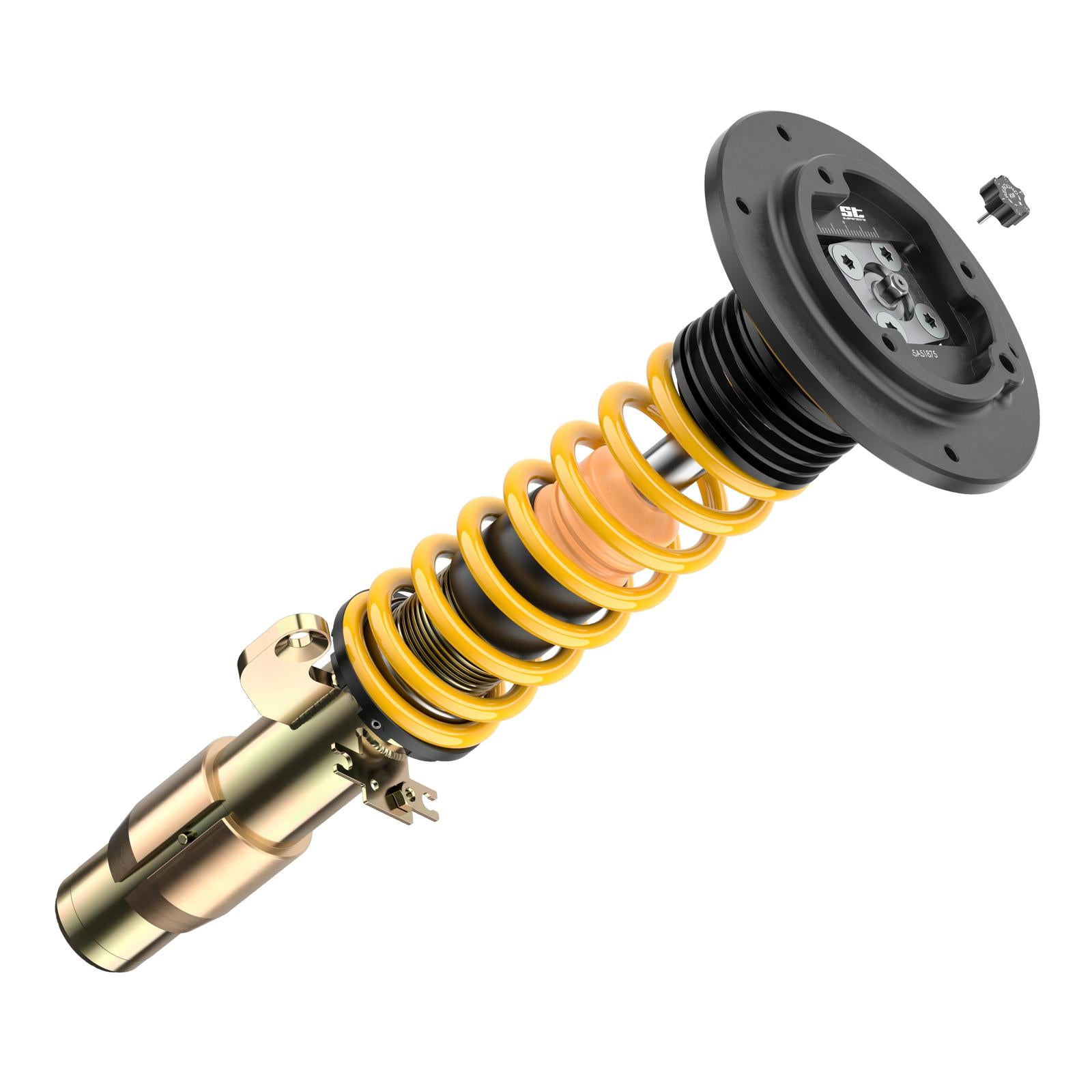

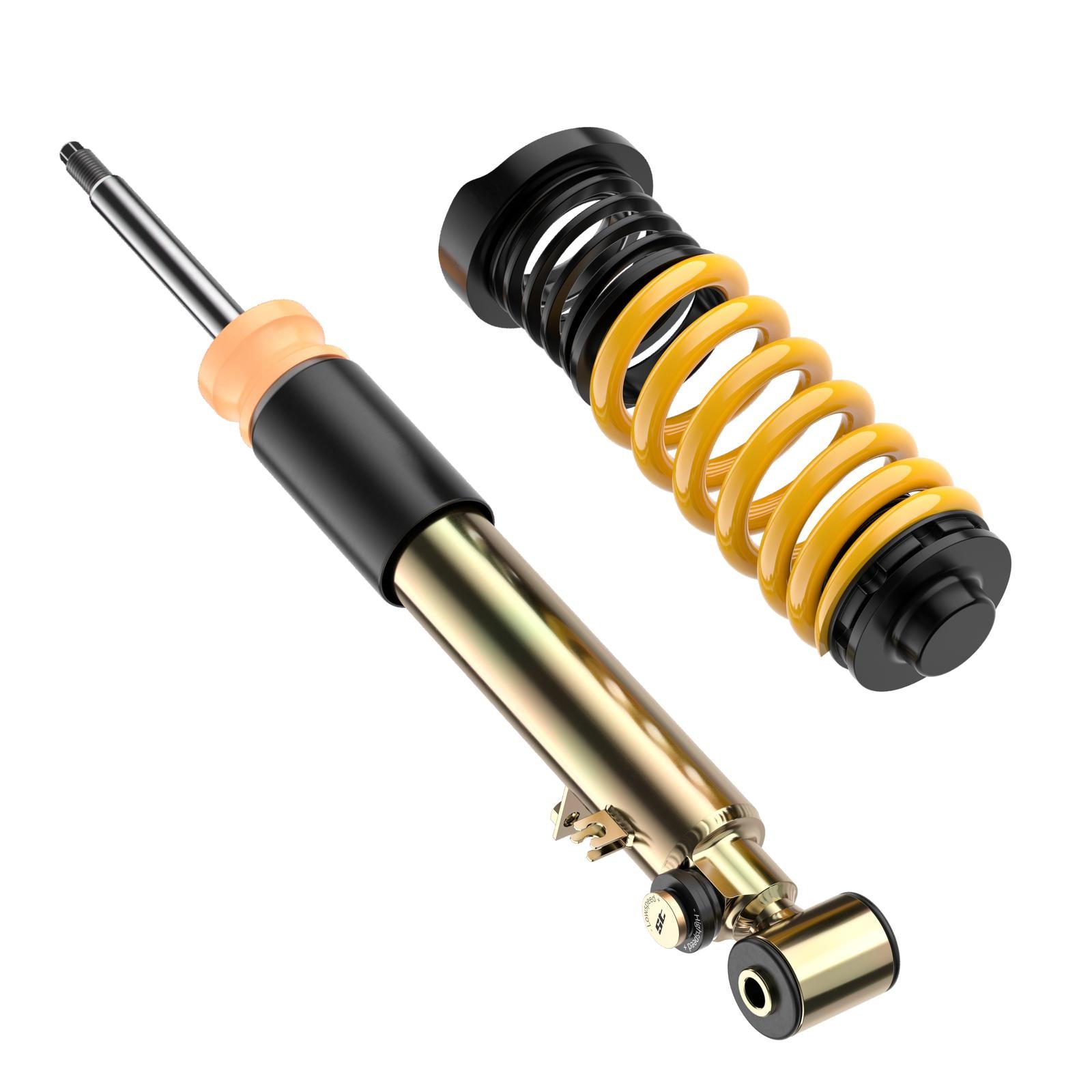

ST XTA plus 3 COILOVERS
The XTA plus 3 coilover kit gives your car maximum performance for the road and the tools you need for any challenge.
From the factory, the XTA plus 3 coilover kit is equipped with KW dampers that are adjustable in high- and lowspeed compression as well as adjustable rebound damping. With 24 clicks of adjustment for each, high speed and low speed compression damping and 18 clicks of rebound adjustment, your suspension knows no limits. It doesn’t matter if you bolt in an aftermarket roll cage, weld in a cage, modification to PU bushings upgrade to spherical bushing or changed wheel loads – the XTA plus 3 coilover has what it takes to keep your car dialed! Of course, the XTA plus 3 also includes a parts approval certificate, race springs and aluminium unibal top mounts.
Easy lowering adjustment
Like all ST coilovers the lowering adjustment is made via a continuous thread on the galvanized strut. This even allows the lowering to be made even when the kit is installed by turning the spring plate higher or lower! NOTE: The lowering of each vehicle differs greatly with ST XTA plus 3 coilovers due to the type of construction.
KW Engineering: Exclusive for ST suspension
The high-quality ST XTA plus 3 coilover is based on the twin-tube damping principle of low friction combined with pressure-resistant damper housings. Manufactured directly at KW, a mono block guide and seal package reduces the friction of the damper as well as protecting it against corrosion and dirt. Each galvanized strut is sealed multiple times to ensure maximum longevity in ALL weather conditions.
- Latest damping technology for maximum longevity
- Reduced system friction for effective damping adjustment
- Individual lowering within the tested adjustment range
- Front and rear axle (when possible) with thread adjustment
- Galvanized coilover struts with additional coating for an optimized corrosion protection
- Complete solution with adjustable spring plate, spring system and bumpers with dust protection
- Aluminium adjustable uniball top mounts (when possible)
- Scaled camber adjustment, when possible
- 3-way adjustable dampers:
18 clicks low speed rebound damping
24 clicks low speed compression damping
24 clicks high speed compression damping




-
