KW Suspensions
ST-XTA Coilover Suspension - F80/F82/F83/F87 - M2/M3/M4
ST-XTA Coilover Suspension - F80/F82/F83/F87 - M2/M3/M4
VAT for European customers is added at checkout.
Ships within 3+ weeks
Couldn't load pickup availability
- Product Line: Street Performance
- Lowering FA/RA (mm): 20-40/15-40
- Version: XTA
- Damping adjustment: Rebound damping
- Material: Galvanized steel
- Adjustment FA/RA: Thread/Thread
- Approval: Teilegutachten (§19.3)

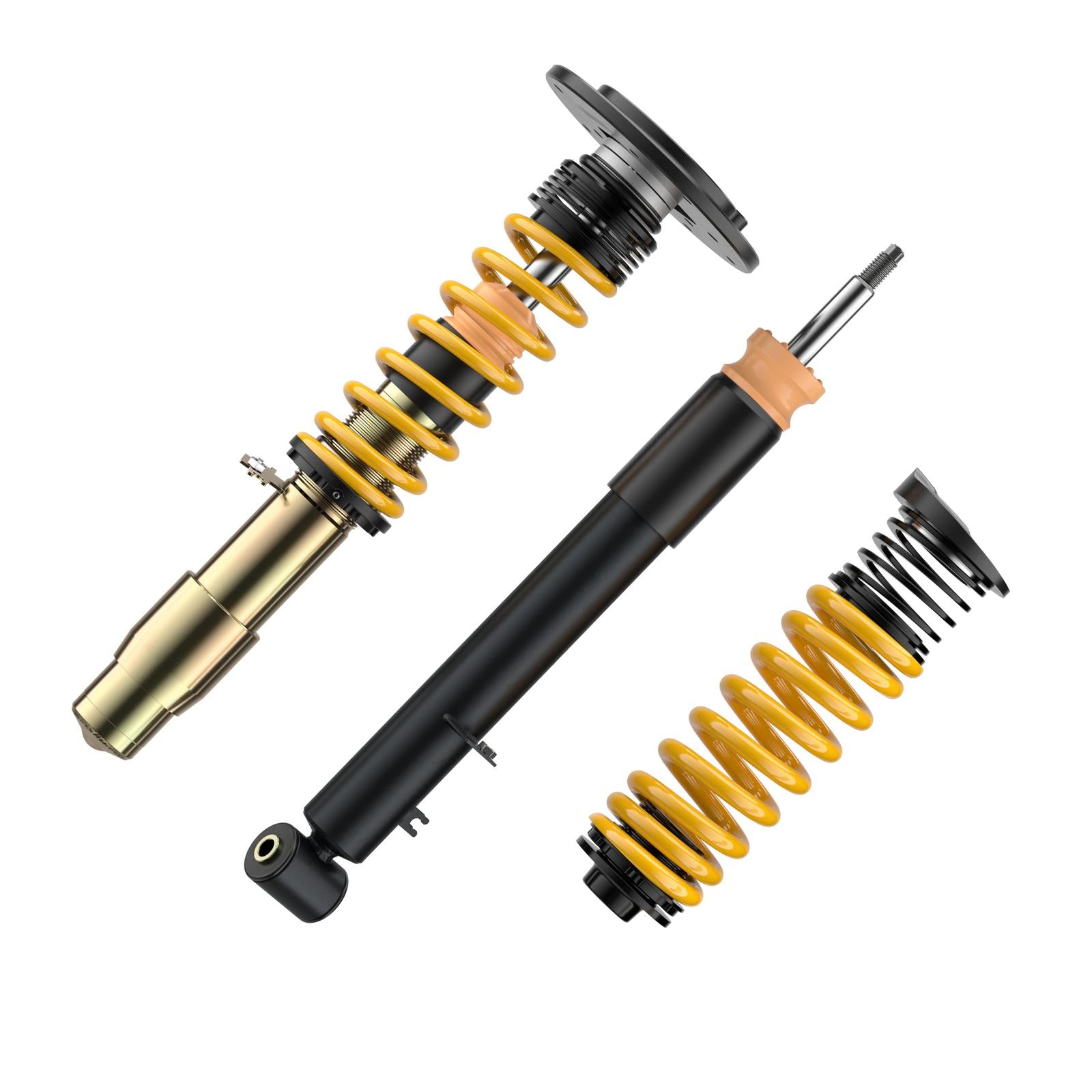

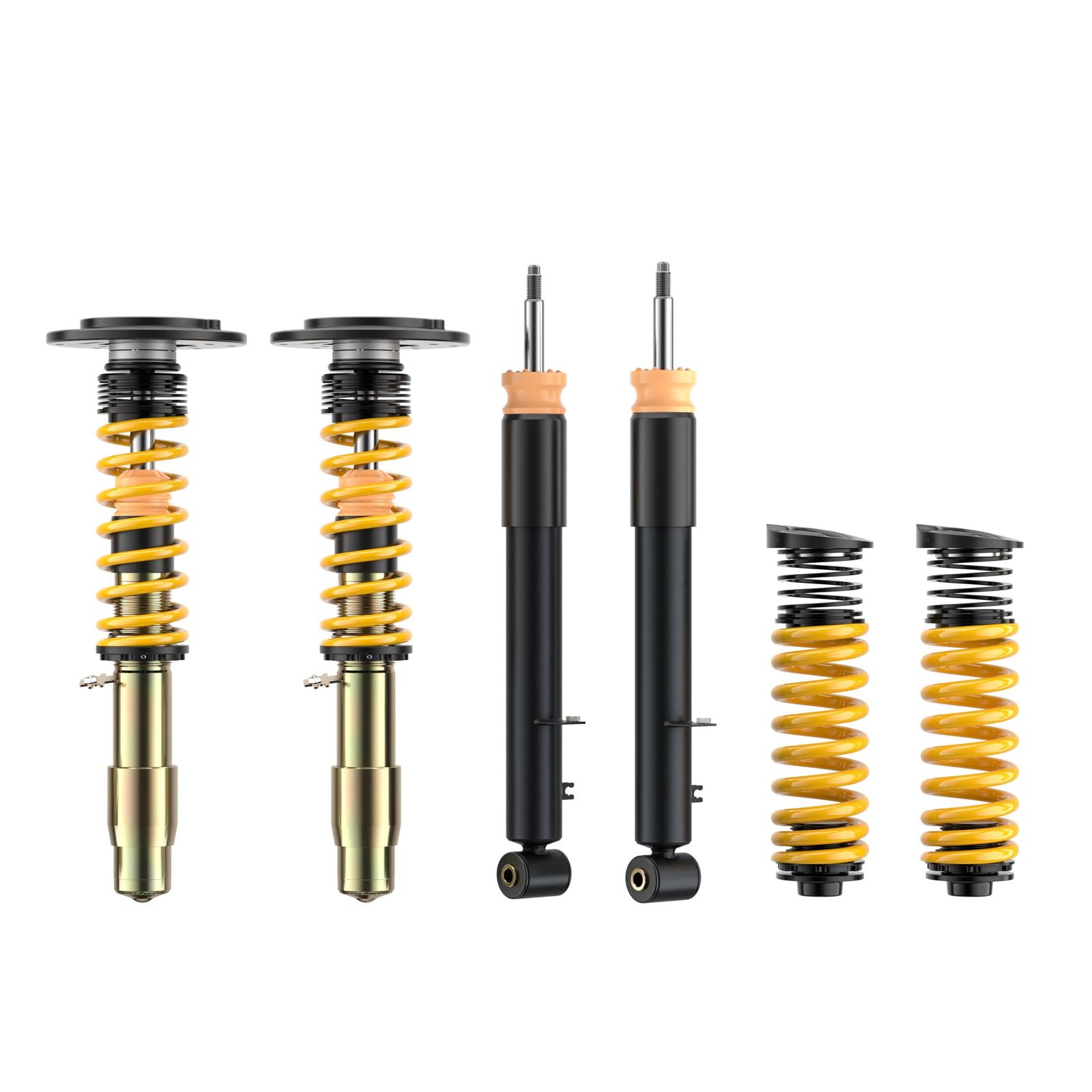

- Content of delivery: Set FA coilover struts incl. top mounts, RA springs with height adjustment + dampers
BMW F80 M3 / M3 Competiton / M3 CS
BMW F82 M4 / M4 Competition / M4 CS
BMW F87 M2
BMW F87 M2 Competition / CS
*NOTE - Camber Plates are made to fit both non-competition and competition variants of the BMW F87 M2. Camber plates are with the 5 bolt arrangement found on F8X vehicles post 2016, the new bolts are included in the package.
ST XTA COILOVERS

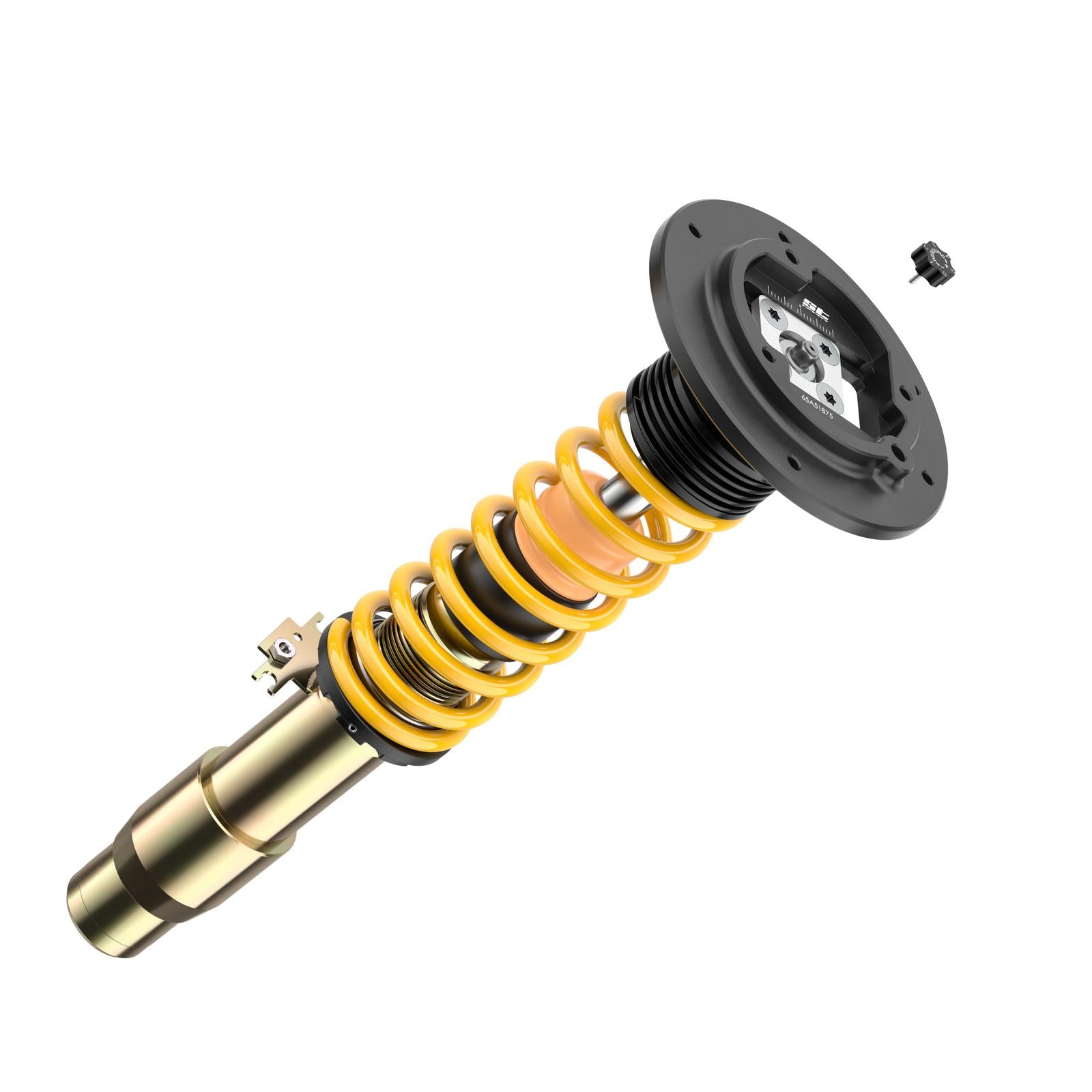

For those who demand the absolute best performance comes the ST XTA coilover. The full driving behaviour of your car can be adjusted using KW damper technology along with an adjustable aluminium uniball top mount for fine-tuning of the camber and caster!
Performance driving in mind
ST XTA coilovers feature KW damping technology which allows the suspension to be made either stiffer or softer depending on the driving conditions. This damping adjustment is made on the upper end of the chromed piston rod allowing the setup to be changed almost instantly. If the rebound force is increased, the car will drive with even more track stability and further reduced bodyroll. If the rebound force is decreased, the car will feel more comfortable when on the move. For increased performance, the ST XTA features an aluminium adjustable topmount allowing the camber and caster to be adjusted depending on your driving needs or vehicle setup.
Easy lowering adjustment
Like all ST coilovers the lowering adjustment is made via a continuous thread on the galvanized strut. This even allows the lowering to be made even when the kit is installed by turning the spring plate higher or lower! NOTE: The lowering of each vehicle differs greatly with ST XTA coilovers due to the type of construction. For example, older vehicles such as the Honda Civic (EJ9) can be lowered between 40-75mm with ST XTA coilovers, while newer models such as the Audi S3 (8P) can be lowered between 10-40mm due to being much lower from the factory.
KW Engineering: Exclusive for ST suspension
The high-quality ST XTA coilover is based on the twin-tube damping principle of low friction combined with pressure-resistant damper housings. Manufactured directly at KW, a mono block guide and seal package reduces the friction of the damper as well as protecting it against corrosion and dirt. Each galvanized strut is sealed multiple times to ensure maximum longevity in ALL weather conditions.
- Latest damping technology for maximum longevity
- Reduced system friction for effective damping adjustment
- Individual lowering within the tested adjustment range
- Front and rear axle (when possible) with thread adjustment
- Galvanized coilover struts with additional coating for an optimized corrosion protection
- Complete solution with adjustable spring plate, spring system and bumpers with dust protection
- Aluminium adjustable uniball top mounts (when possible)
- Scaled camber adjustment, when possible
- Externally adjustable damping



-
