OEM BMW CSL Airbox Fitting Kit

Some parts are needed in order to fit your Haimus Racing S54 Carbon Plenum. The parts depend on your wants / desires and also your gearbox.

NOTE** - whichever kit you chose YOU WILL NEED TO PURCHASE A IAT RELOCATION KIT LOCALLY""

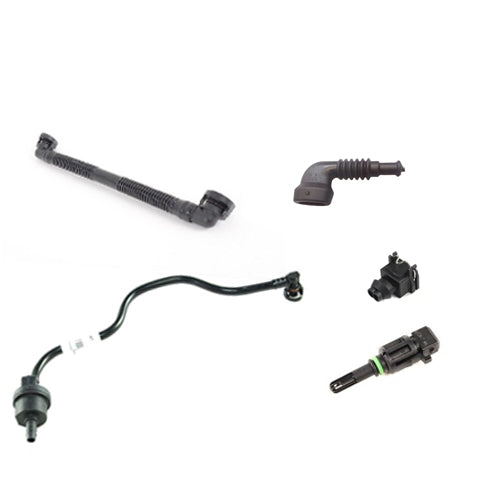

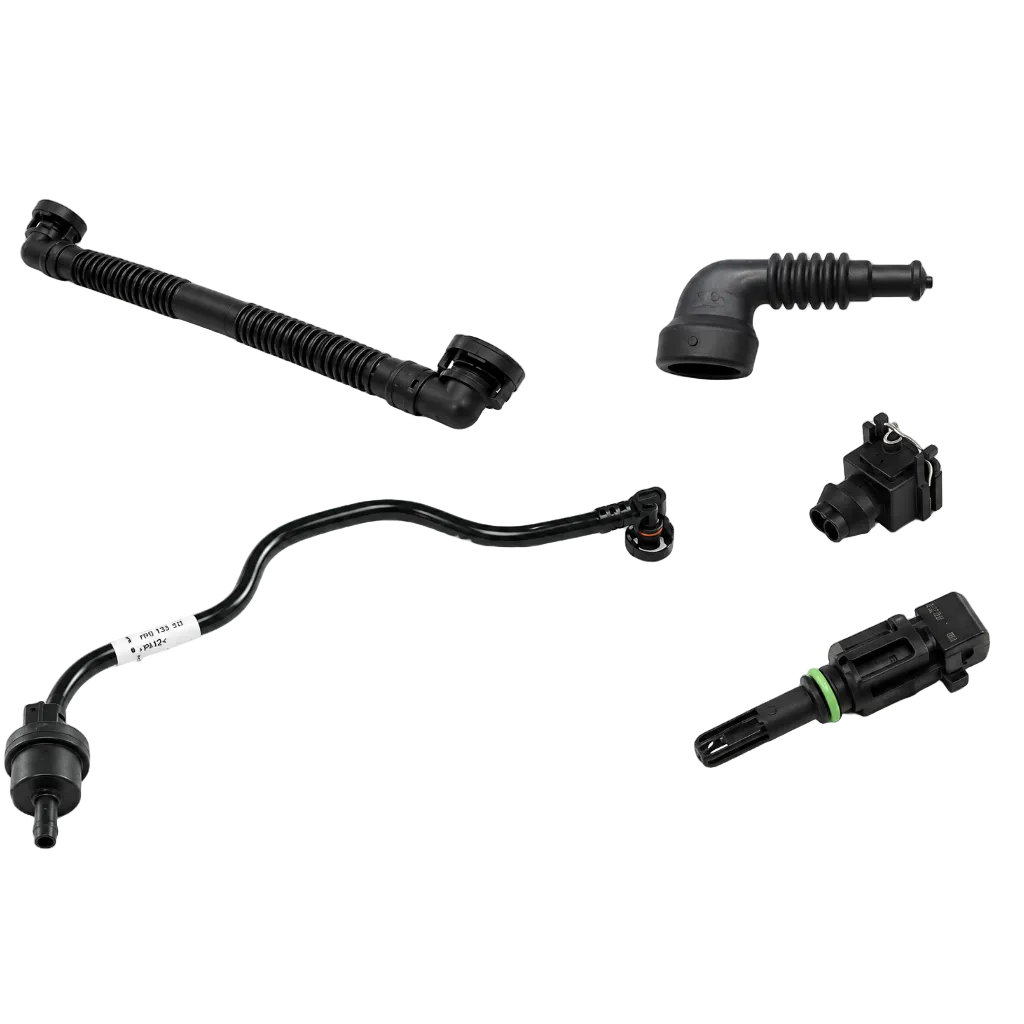

MANUAL GEARBOX 2000-2003

CSL Air Shut off Valve - 11617833647
OEM CSL Intake Temperature Sensor - 13621739510
CSL Crank Case Vent Hose - 11157833649
2 pole socket housing for CSL IAT Sensor - 12521427615
90 deg protective boot for 2 pole socket housing - 12521732635

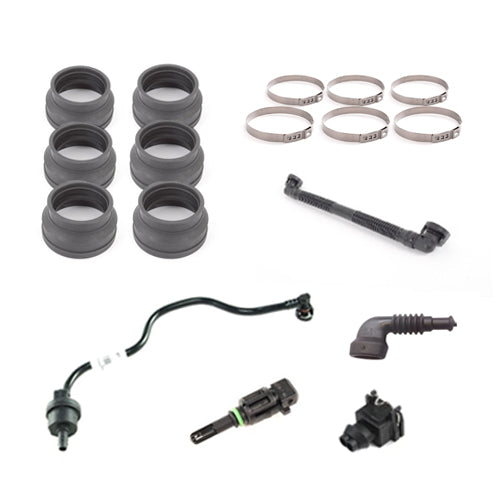

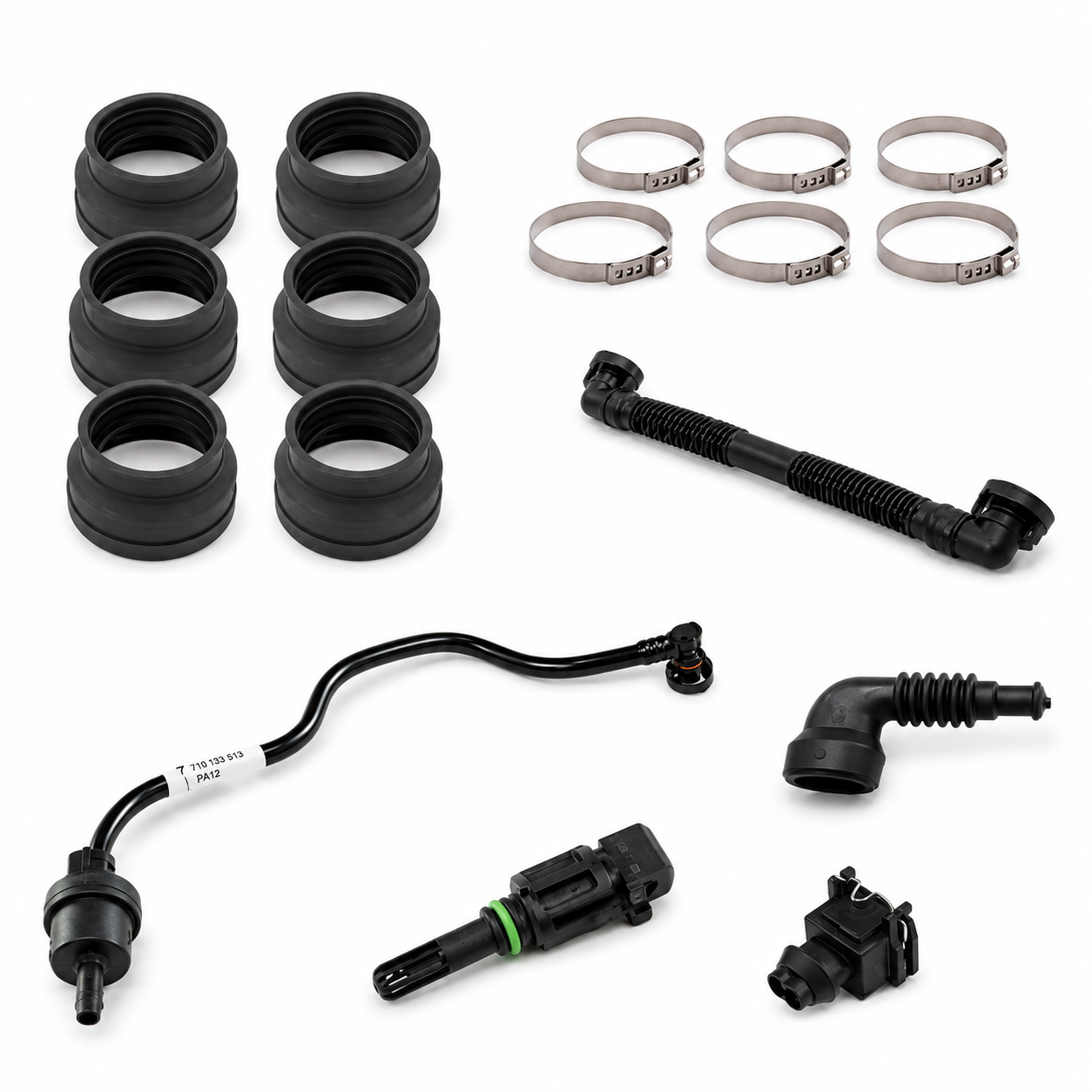

MANUAL GEARBOX 2003 onwards

CSL Air Shut off Valve - 11617833647
OEM CSL Intake Temperature Sensor - 13621739510
CSL Crank Case Vent Hose - 11157833649
2 pole socket housing for CSL IAT Sensor - 12521427615
90 deg protective boot for 2 pole socket housing - 12521732635
6 x Intake Rubber Boot - 11612466477
6 x Hose Clamps - 11617830306

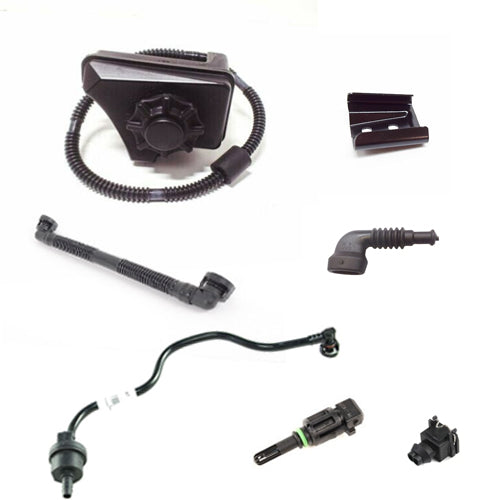

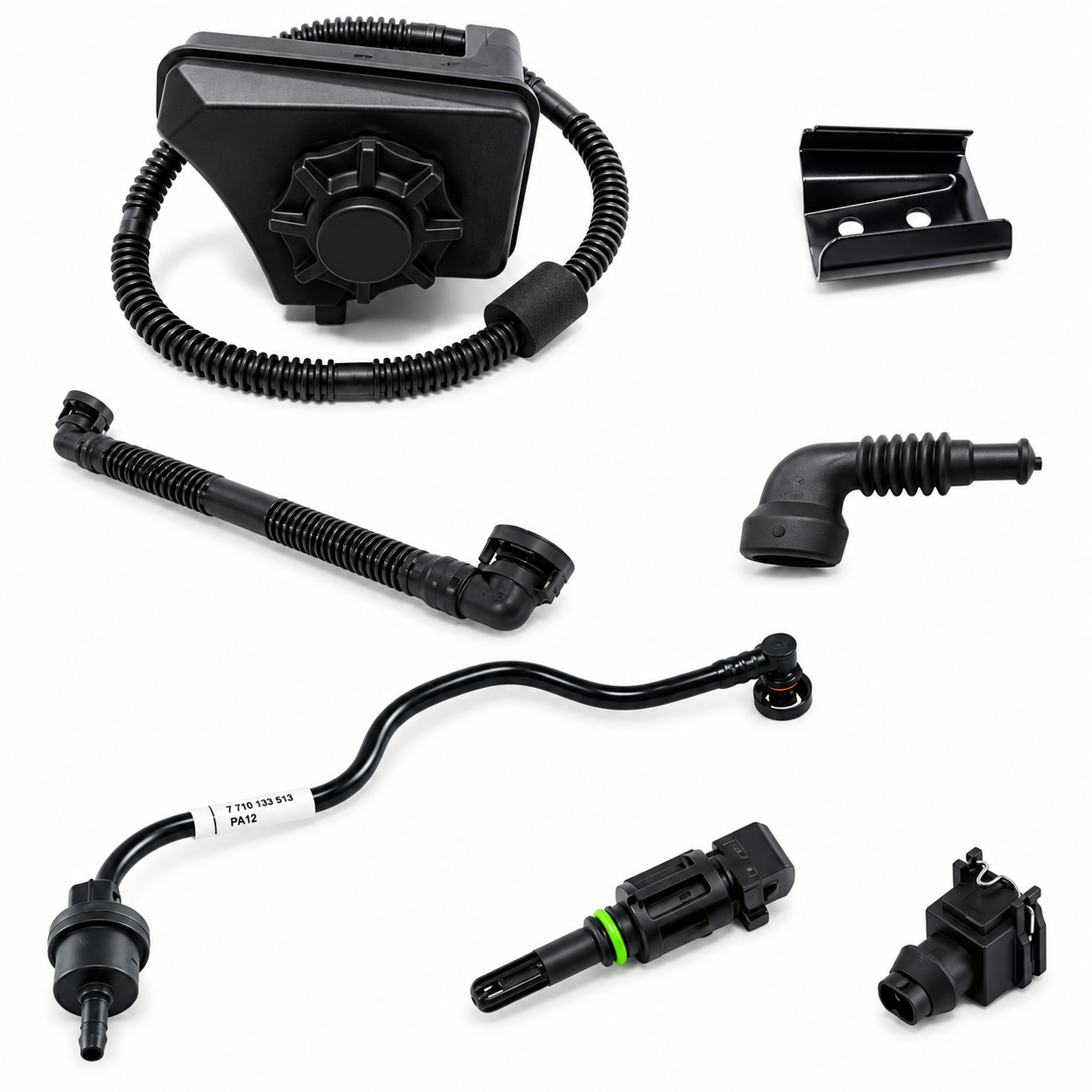

SMG GEARBOX 2000-2003

CSL Air Shut off Valve - 11617833647
OEM CSL Intake Temperature Sensor - 13621739510
CSL Crank Case Vent Hose - 11157833649
2 pole socket housing for CSL IAT Sensor - 12521427615
90 deg protective boot for 2 pole socket housing - 12521732635
CSL SMG Fluid Expansion Tank - 21532282549
CSL SMG Expansion Tank Bracket - 4114789613

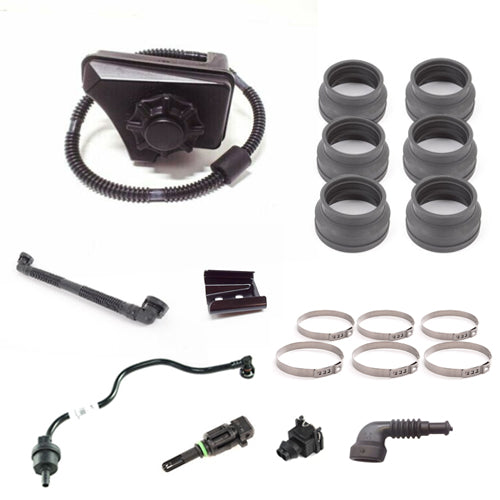

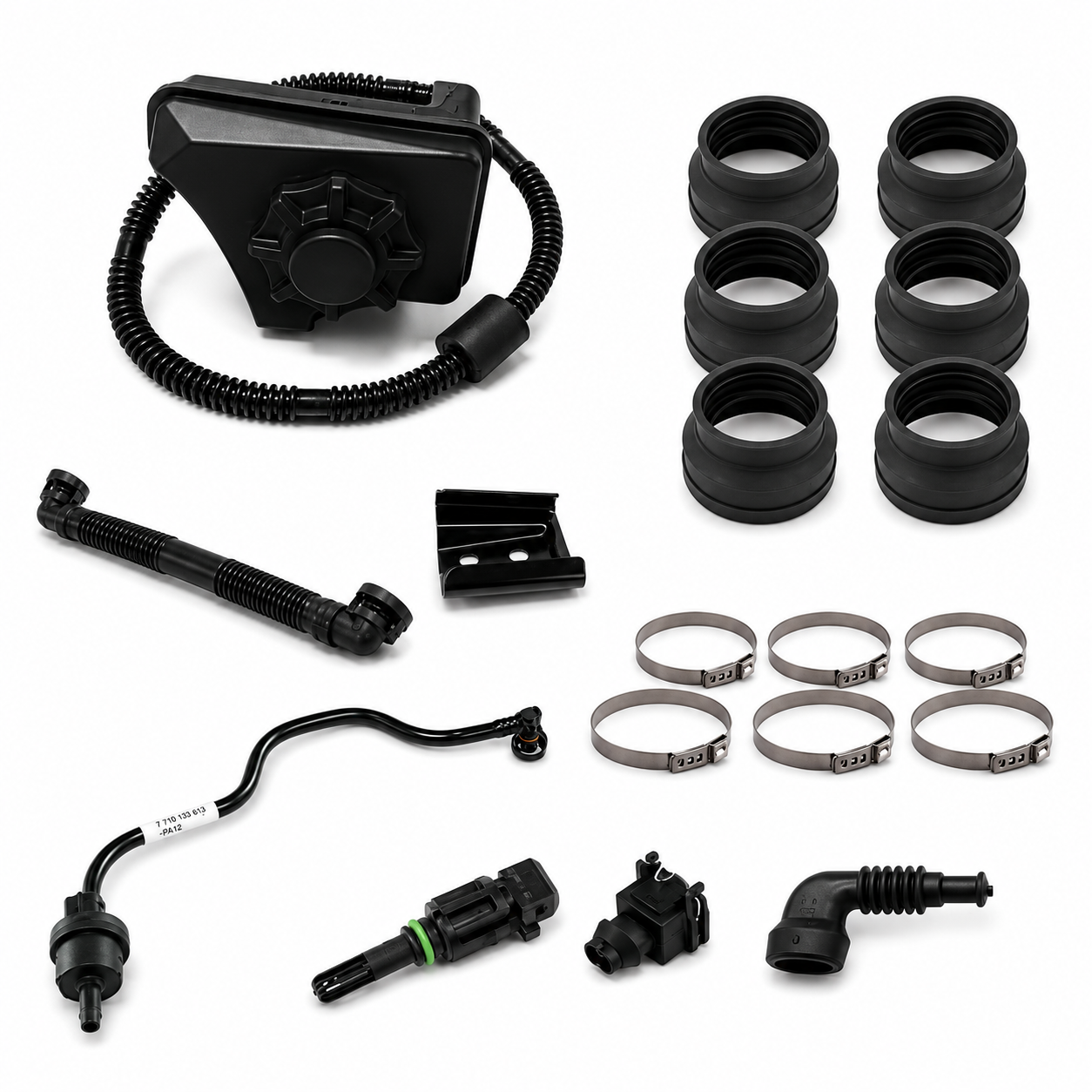

SMG GEARBOX 2003+

CSL Air Shut off Valve - 11617833647
OEM CSL Intake Temperature Sensor - 13621739510
CSL Crank Case Vent Hose - 11157833649
2 pole socket housing for CSL IAT Sensor - 12521427615
90 deg protective boot for 2 pole socket housing - 12521732635
CSL SMG Fluid Expansion Tank - 21532282549
CSL SMG Expansion Tank Bracket - 41147896136
6 x Intake Rubber Boot - 11612466477
6 x Hose Clamps - 11617830306

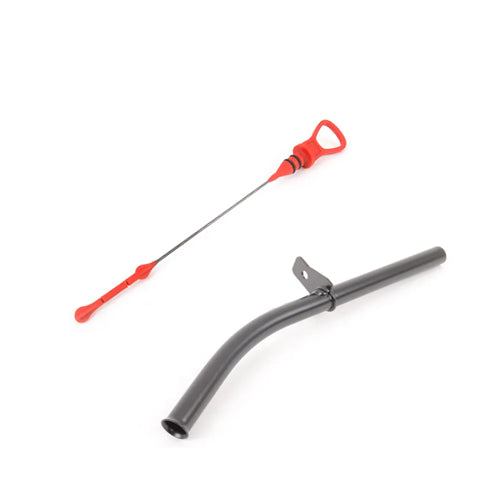

OIL DIPSTICK - OPTIONAL, BUT RECOMMENDED:

The following parts are optional but recommended. If you chose not to run the CSL oil dipstick you will have to twist the OEM dipstick to come out the opposite end of the intake, close to the front left shock tower.

CSL OIL DIPSTICK - 11437834784
CSL OIL DIPSTICK GUIDE TUBE - 11437833653
